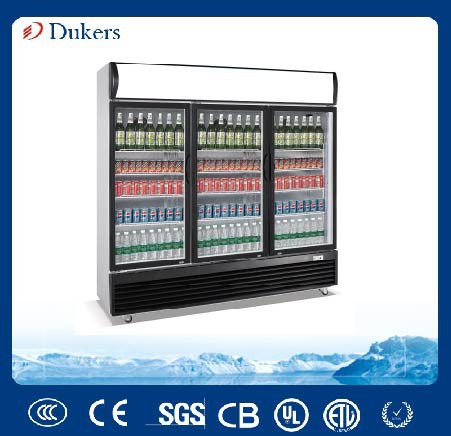

3 Doors Upright Showcase

Place of Origin: Guangdong, China (Mainland) Min.Order Quantity:18 Piece/Pieces 1*40GP Supply Ability:4000 Piece/Pieces per Month Port:Huangpu Payment Terms:L/C,T/T Brand Name: Dukers/ OEM

Send Inquiry Chat Now

Description

3 Doors Upright Showcase

Quick Details

Model Number: LG-1320 Type: Display Cooler

Style: Single-temperature Certification: CE,ROHS

Capacity: 1320 Temperature: 0~10

Climate Type: ST/T Refrigerant: R134a

Cooling type: Direct cooling Door: Double layers glass door

Door frame: aluminum,PVC for option Evaporator fan: yes

Condenser fan motor: yes Lamp: LED for option

Shelf: 12 pcs Capacity range: 1020L,1320L

Packaging & Delivery

Packaging Details:	5 layers corrugated case and wood pallet
Delivery Detail:	within 30days

Specifications

1) DIRECET COOLING,DOUBLE DOORS
2) DOUBLE LAYERS GLASS DOOR WITH LOCK
3) DRAIN SELF EVAPORATION
4) 4 SHELVES, 38*C SUITABLE
Product features
1.Mechanical Temperature Control with Ajustable thermostat

2.1320 liter

3.Fashionable Appearance

4.Large light canopy for advertisement

5.Inner 2 vertical lights for Bright showing effect

6.Large-scalre storege space

7.Double layer door glass degisn

8.CFC free,low power consumption

9.Bottom condenser with fan motor

10.Convenience Wheels design for easy moving

11.With different door frame color for option

Specifications:

MODEL	LG-1020	LG-1320
Net (Liters)	1020	1320
Net (CB FEET)	36.0	46.6
Cooling system	Direct cooling	Direct cooling
Door qty	2 hinge	3 hinge
Auto-Defrost	No	No
Control system	Mechanical	Mechanical
External Dimension WxDxH (mm)	1560x680x2081	1890x680x2081
Packing Dimensions WxDxH(mm)	1610x720x2181	1940x730x2181
Weight net /Weight gross (kg)	183/201	201/230
40' HQ Container	21	18
Glass Door type	Hinge door	Hinge door
Door frame, door handle material	PVC	PVC
Glass type, (tempered)*	Tempered	Tempered
Door Auto Closing	For option	For option
LOCK	YES	YES
Type	R141b	R142b
Dimensions (mm)	50(average)	51(average)
Adjustable shelves (pcs)	12	12
Adjustable Rear Wheels (pcs)	2	2
Caster	2	2
Internal light vert./hor.*	Vertical*2	Vertical*2
Voltage/frequency	220~240V/50HZ	220~240V/50HZ
Power consumption (w)	554	700
Amp. Consumption (A)	4.17	5.25
Energy consumption (kWh/24h)	7.02	8.76
Cabinet Tem. 0C	0~10 0C	0~10 0C
Temperature digital screen	No	No
Climate Class As per EN441-4	Class 3	Class 3
Max. Ambient Temp. 0C	38 0C	38 0C
Refrigerant (CFC-free) gr	R134a	R134a
Outer Cabinet	Pre-painted steel	Pre-painted steel
Inside Cabinet	Pre-painted aluminium	Pre-painted aluminium
Condenser	backside Mash Wire	backside Mash Wire
Evaporator	In Insulation	In Insulation
Evaporator fan	14W Square fan	14W Square fan
Certification	CE,ROHS	CE,ROHS
