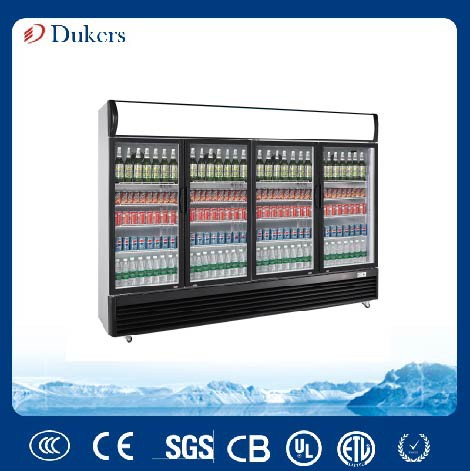

4 Doors Upright Showcase

Quick Details

Model Number: LG-1620 Type: Display Cooler

Style: Single-temperature Certification: CE,ROHS

Capacity: 1620 Temperature: 0~10

Climate Type: ST/T Refrigerant: R134a

Cooling type: Direct cooling Door: Double layers glass door

Door frame: aluminum,PVC for option Evaporator fan: yes

Condenser fan motor: yes Lamp: LED for option

Shelf: 16 pcs Capacity range: 1620L

Packaging & Delivery

Packaging Details:	5 layers corrugated case and wood pallet
Delivery Detail:	within 30days

Specifications

1) DIRECET COOLING,DOUBLE DOORS
2) DOUBLE LAYERS GLASS DOOR WITH LOCK
3) DRAIN SELF EVAPORATION
4) 4 SHELVES, 38*C SUITABLE


Product features

-Mechanical Temperature Control with Ajustable thermostat
-1620 liter
-Fashionable Appearance
-Large light canopy for advertisement
-Inner 2 vertical lights for Bright showing effect
-Large-scalre storege space
-Double layer door glass degisn
-CFC free,low power consumption
-bottom condenser with fan motor
-Convenience Wheels design for easy moving
-With different door frame color for option
Specifications:

MODEL	LG-1620
Net (Liters)	1620
Net (CB FEET)	57.2
Cooling system	Direct cooling
Door qty	4 hinge
Auto-Defrost	No
Control system	Mechanical
External Dimension WxDxH (mm)	2080x725x2081
Packing Dimensions WxDxH(mm)	2130x775x2181
Weight net /Weight gross (kg)	235/255
40' HQ Container	15
Glass Door type	Hinge door
Door frame, door handle material	PVC
Glass type, (tempered)*	Tempered
Door Auto Closing	For option
LOCK	YES
Type	R141b
Dimensions (mm)	50(average)
Adjustable shelves (pcs)	12
Adjustable Rear Wheels (pcs)	2
Caster	2
Internal light vert./hor.*	Vertical*2
Voltage/frequency	220~240V/50HZ
Power consumption (w)	800
Amp. Consumption (A)	5.88
Energy consumption (kWh/24h)	10.94
Cabinet Tem. 0C	0~10 0C
Temperature digital screen	No
Climate Class As per EN441-4	Class 3
Max. Ambient Temp. 0C	38 0C
Refrigerant (CFC-free) gr	R134a
Outer Cabinet	Pre-painted steel
Inside Cabinet	Pre-painted aluminium
Condenser	backside Mash Wire
Evaporator	In Insulation
Evaporator fan	14W Square fan
Certification	CE,ROHS

FAQ

1.What's the Payment Terms?
30% T/T in advance as deposit, 70% balance should be paid by T/T before shipment.

2.Can you provide sample?
We can provide sample for you. The sample time is about 15 days.

3.What is your MOQ?
Our MOQ for regular price is a 40ft container. Also we accept smaller quantity order. But the price will be little higher because of the increased cost of material for small quantity.

4.Can you support customize?
Our product can be customized as our customer's request.

5.What is your production lead time?
Normally, production time is 35days after receipt of pre-pay.

6.What certificate do you have?

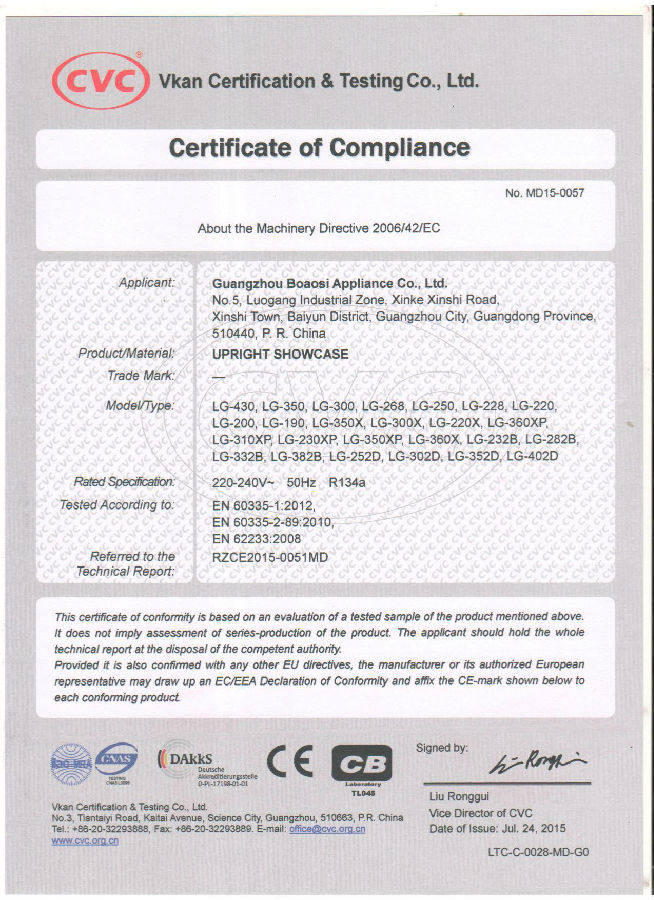

We have many certificate for 70+ countries. We have CE, ETL, CETL, ROHS, PSE, SAA certificate.
