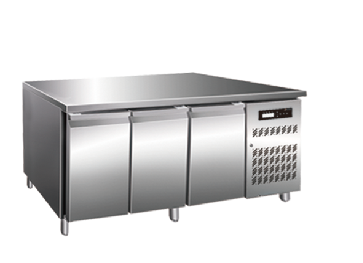

Stainless steel inside and outside , sealed interrior floors and rounder cabinet comers for easy cleaning
Self closing doors with stay open feature ,lifetime guaranteed door hingers
Digital temperatature controller with automatic defrost system
Forced air refrigeration system
Adjustable ,heavy duty shelves
Adjustable feet
Packaging Details: Standard exporting carton packing.
Delivery Detail: 35 Days
Model No | Temperature Range | External Dimension W*D*H(MM) | Packing,carton W*D*H(MM) | Weight Net/ Weight Gross(kg) | Door | 40HQ Container Certification | Refrigeration |
TZ12F | +10~-10 | 1200*760*800 | 1260*820*860 | 98/105 | 1 | 69 | R134A/R290 |
TZ15F | +10~-10 | 1500*760*800 | 1560*820*860 | 108/118 | 2 | 42 | R134A/R290 |
TZ18F | +10~-10 | 1800*760*800 | 1860*820*860 | 128/138 | 2 | 42 | R134A/R290 |
Model No | Temperature Range | External Dimension W*D*H(MM) | Packing,carton W*D*H(MM) | Weight Net/ Weight Gross(kg) | Door | 40HQ Container Certification | Refrigeration |
TD12F | -10~-18 | 1200*760*800 | 1260*820*860 | 98/105 | 1 | 69 | R404A/R290 |
TD15F | -10~-18 | 1500*760*800 | 1560*820*860 | 108/118 | 2 | 42 | R404A/R290 |
TD18F | -10~-18 | 1800*760*800 | 1860*820*860 | 128/138 | 2 | 42 | R404A/R290 |
1.What if the freezer is not operating?
(1)Power cord unplugged loose.
(2)Faulty receptacle
(3)Circuit breaker tripped,or blown fuse, or open supply circuit
(4)Improper power supply applied to the freezer
(5)Freezer switch at the front turned off.
(6)Freezer in the 6minute start up delay mode.
(7)Thermostat or electronic controller set for too warm temperature.
2.What if the freezer is making abnormal noises?
Check following :
(1)The freezer unleveled
(2)Parts loose
(3)Condenser blade touching loose wiring.
(4)Refrigerant leaked out
(5)Motor bearings worn out.
3.What if there is water on the floor under and /or around freezer?
Check following:
(1)The drain hose outside of the drain pan
(2)Leak in the drain pan
(3)Excessive ambient humidity and door openings
