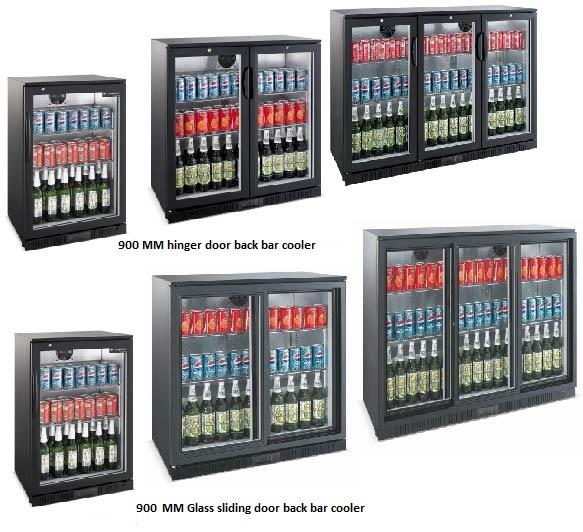

900mm Height Hinge Door Commercial Back Bar Cooler Display

900mm height Hinge door commercial back bar cooler display

Hinge door back bar cooler quick details

Place of Origin: Guangdong, China (Mainland) Brand Name: Dukers/OEM

Model Number: LG-208S Power Source: Electric

Refrigeration Type: Compressor Refrigerator Temperature Zone: Single-Zone

Temperature Control: Electronic Temperature Installation: Built-In

Certification: CB, CE, EMC, GS, RoHS, SASO Capacity: 208L

Dimensions (L x W x H (Inches):900*520*900mm Voltage (V): 220

Feature: Compressor Color: Black/silver/brown

Door: handle/sliding Refrigerant: R134a/R600a

Climate: ST Type: single temperature

Temperate controller: Digital controller Material: Painted Metal/stainless steel

Application:restaurant,store,bar,supermarket

Back Bar Cooler display Packaging & Delivery

Packaging Details:	5 layer strong corrugated export carton,wooden pallet for option packing Dimension:960*570*980mm external Dimension:900*520*900mm G.W:72KG N.W:62KG Loading capacity:48/96/96pcs
Delivery Detail:	35 days

Commercial Back Bar Cooler Display Features

1) Forced air circulation
2) Double layer glass door
3) Self-evaporation water tray
4) Movable shelves
5) Low energy consumption
6) Electronic temperature control with led display
7) Large-scale storage space

8) Certificates: ROHS,CE,GS

back bar cooler specification



MODEL	LG208H	LG208S	LG330H	LG330S
Net (Liters)	208	208	330	330
Net (CB FEET)	7.3	7.3	11.7	11.7
Cooling system	Fan cooling	Fan cooling	Fan cooling	Fan cooling
Auto-Defrost	Yes	Yes	Yes	Yes
Control system	Electronic	Electronic	Electronic	Electronic
External Dimension WxDxH(mm)	900*520*900	900*520*900	1350*520*900	1350*520*900
Internal Dimension WxDxH(mm)	820*385*750	820*385*750	1260*385*750	1260*385*750
Packing Dimension WxDxH(mm)	960*570*980	960*570*980	1405*570*980	1405*570*980
Weight net /Weight gross (kg)	62/72	62/72	80/90	80/90
20'GP/ 40' GP/ 40' HQ Container	48/96/96	48/96/96	32/66/66	32/66/66
Glass Door type	Hinge door	Sliding door	Hinge door	Sliding door
Door frame, door handle material	PVC	PVC	PVC	PVC
Glass type, (tempered)*	TEMPERED GLASS	TEMPERED GLASS	TEMPERED GLASS	TEMPERED GLASS
Door Auto Closing	Auto Closing	Auto Closing	Auto Closing	Auto Closing
LOCK	YES	YES	YES	YES
Type	CYCLOPENTANE	CYCLOPENTANE	CYCLOPENTANE	CYCLOPENTANE
Dimensions (mm)	40(average)	40(average)	40(average)	40(average)
Adjustable shelves (pcs)	4	4	6	6
Adjustable feet (pcs)	4	4	4	4
Locking Feet	0	0	0	0
Internal light vert./hor.*	Horizontal*1	Horizontal*1	Horizontal*1	Horizontal*1
Voltage/frequency	220~240V/50HZ	220~240V/50HZ	220~240V/50HZ	220~240V/50HZ
Power consumption (w)	230	230	265	265
Amp. Consumption (A)	1.56	1.56	1.86	1.86
Energy consumption (kWh/24h)	1.9	1.9	2.5	2.5
Cabinet Tem. 0C	0-10 0C	0-10 0C	0-10 0C	0-10 0C
Temperature digital screen	Yes	Yes	Yes	Yes
Climate Class As per EN441-4	Class 3 ~ 4	Class 3 ~ 4	Class 3 ~ 4	Class 3 ~ 4
Max. Ambient Temp. 0C	38 0C	38 0C	38 0C	38 0C
Refrigerant (CFC-free) gr	R134a/R600a	R134a/R600a	R134a/R600a	R134a/R600a
Outer Cabinet	Pre-painted steel	Pre-painted steel	Pre-painted steel	Pre-painted steel
Inside Cabinet	Compressed aluminium	Compressed aluminium	Compressed aluminium	Compressed aluminium
Condenser	Bottom Mash Wire	Bottom Mash Wire	Bottom Mash Wire	Bottom Mash Wire
Evaporator	Blow expanded board	Blow expanded board	Blow expanded board	Blow expanded board
Evaporator fan	14W Square fan	14W Square fan	14W Square fan	14W Square fan
Certification	CE,ROHS,GS	CE,ROHS,GS	CE,ROHS,GS	CE,ROHS,GS

back bar cooler display FAQ

1.How to ensure the back bar cooler display place leveling?

the method is to adjust the forefoot of the refrigerator, through continuous adjustment, you can observe the refrigerator by the water line in the way to reach the level, can effectively prevent the refrigerator vibration.

2.How do i clean and protect my back bar cooler display ?

Make sure the back bar cooler display is disconnected form power source before commencing any cleaning .

(1)New refrigerator cleaning: After the refrigerator is placed, remove the fixed tape, and then clean the refrigerator ,if any plastic taste, refrigerator need do ventilate without electricity

(2)Use only non-abrasive ,mild liquid cleaners.Use of abrasive or chlorine based cleaners will damage your cabinet .For stainless steel parts, a commercial stainless steel polish and cleaner can be used. Always apply the cleaner to s soft cloth and then clean the freezer with the cloth-never apply the cleaner directly onto the freezer.Use soft water if possible .

FAQ

1. Are you Trading Company or Factory/Manufacturer?

We are factory/manufacturer, locates in Guangzhou City, Guangdong Province,China.

2. What is your MOQ?

Our MOQ is One Container

3.How about the quality of your products?

We have 20 years experience of refrigeration equipment,and our workers are professional.we use famous accessories to keep the quality workable.

4. what is your delivery time?

We usually prepare goods ready to ship in 35-45days.

5. Can i put my logo ?

Sure, of course. we accept OEM and ODM.

6. How about Warranty?

We provide 1 year (365 days) warranty on whole equipment(both accessories and compressor).

7. What is your payment term?

Payment term is 30% deposit upon confirm order, 70% balance before shipment.
