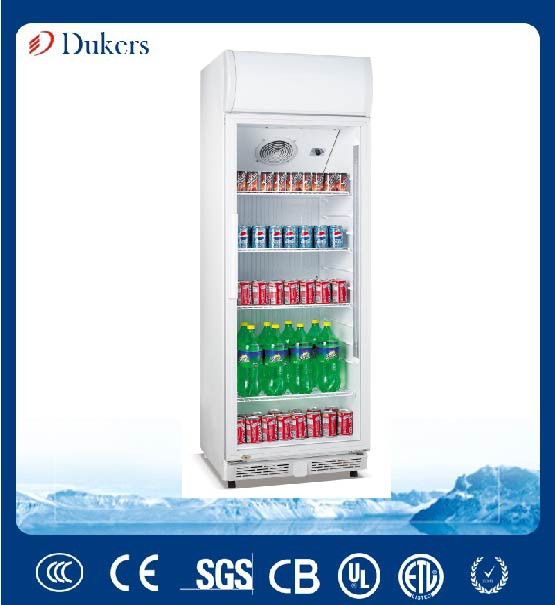

1 Door Direct Cooling Large Storage Plastic Liner Upright Showcase Without Canopy

Min.Order Quantity:73 Piece/Pieces Supply Ability:1500 Set/Sets per Month Port:Guangzhou/Shenzhen Payment Terms:L/C,T/T Brand Name: DUKERS/OEM

Send Inquiry Chat Now

Description

1 Door Direct Cooling Large Storage Plastic Liner Upright Showcase Without Canopy

large storage Upright showcase without canopy Quick Details

Model Number: LG-310XP interior: ABS plastic

Door frame: plastic refrigerant: R134a

temperature range: 0-10°C temp control: mechanical

type: single-temperature climate: ST

glass: double layer defrost: manual

capacity: 310L

Large Storage Plastic Liner Upright Showcase Without CanopyPackaging & Delivery

Packaging Details:	standard export carton packing External Dimension:6206351841mm Packing Dimension:6856651891mm G.W:78KG N.W:68KG Loading capacity(20FT/40FT/40HQ):27/57/75pcs
Delivery Detail:	30 days

1.plastic bag for cutting off dusty .

2.foam will be pack on glass door and anger for preventing to hit.

3.Cartoon .

4.Bottom Wooden package for big size.

1 Door Large Storage Plastic Liner Upright Showcase features

1)dynamic cooling system with fan inside to even cool air
2)mechanical controller
3)blow expanded evaporator
4)fast cooling
5)easy cleaning
6)adjustable shelves
7)vertical full length light inside and one canopy light
8) two adjustable feet and two wheels
9) R134a refrigerant,CFC free
10) removable shelf design
11) customized sticker for option

1 Door Large Storage Plastic Liner Upright Showcase Without Canopy SPECIFICATIONS:

MODEL	LG-230XP	LG-310XP	LG-360XP
Net (Liters)	230	310	360
Net (CB FEET)	8.1	11.0	12.7
Cooling system	Direct cooling	Direct cooling	Direct cooling
Light box	No	No	No
Bottom surface	Curve	Curve	Curve
Auto-Defrost	No	No	No
Control system	Mechanical	Mechanical	Mechanical
External Dimension WxDxH (mm)	530x635x1442	620x635x1562	620x635x1732
Packing Dimensions WxDxH(mm)	585x665x1501	685x665x1621	685x665x1791
Weight net /Weight gross (kg)	53/59	65/73	72/81
40' HQ Container	102	75	73
Glass Door type	Hinge door	Hinge door	Hinge door
Door frame, door handle material	PVC	PVC	PVC
Glass type, (temperated)*	Normal	Normal	Normal
Door Auto Closing	For option	For option	For option
LOCK	YES	YES	YES
Type	R147b	R148b	R141b
Dimensions (mm)	49(average)	50(average)	51(average)
Adjustable shelves (pcs)	4	4	4
Adjustable Rear Wheels (pcs)	2	2	2
Front Feet (Wheels for Option)	2 Feet	2 Feet	2 Feet
Internal light vert./hor.*	Horizontal*1	Horizontal*1	Horizontal*1
Voltage/frequency	220~240V/50HZ	220~240V/50HZ	220~240V/50HZ
Power consumption (w)
Amp. Consumption (A)
Energy consumption (kWh/24h)
Cabinet Tem. 0C	0~10 0C	0~10 0C	0~10 0C
Temperature digital screen	No	No	No
Climate Class As per EN441-4	Class 3	Class 3	Class 3
Max. Ambient Temp. 0C	38 0C	38 0C	38 0C
Refrigerant (CFC-free) gr	R134a	R134a	R134a
Outer Cabinet	Pre-painted steel	Pre-painted steel	Pre-painted steel
Inside Cabinet	ABS	ABS	ABS
Condenser	backside Mash Wire	backside Mash Wire	backside Mash Wire
Evaporator	Blow expanded board	Blow expanded board	Blow expanded board
Evaporator fan	14W Square fan	14W Square fan	14W Square fan

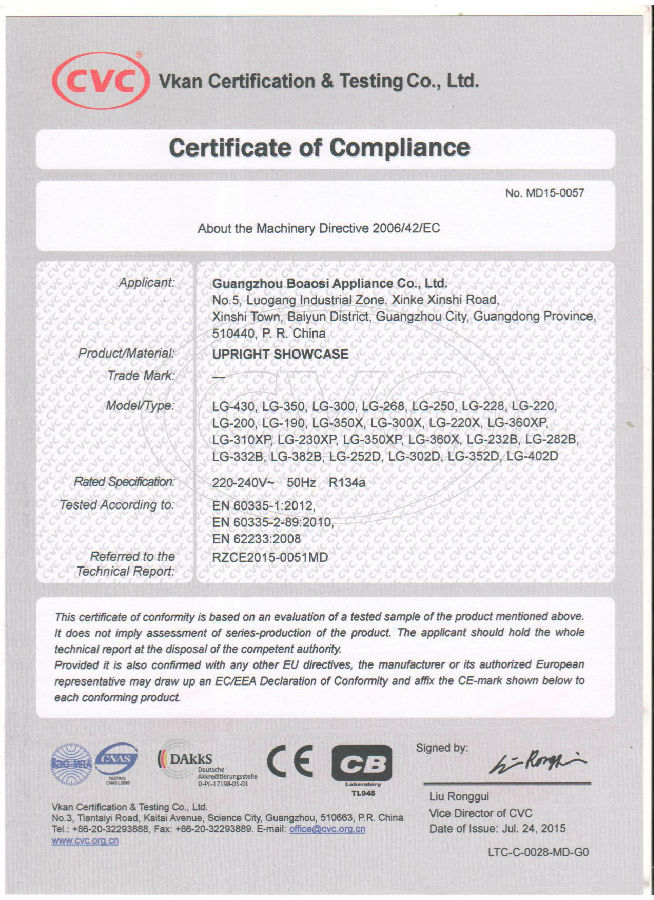

Certification	CE,ROHS	CE,ROHS	CE,ROHS
